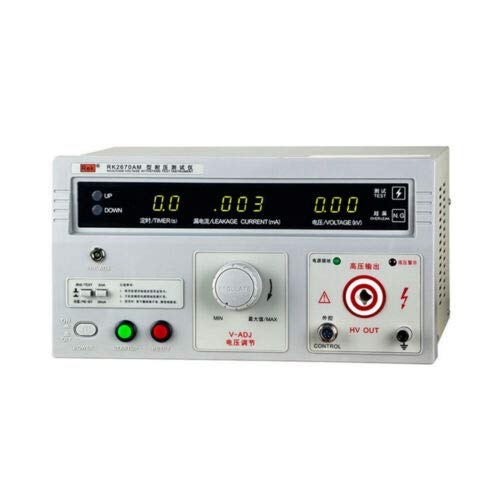

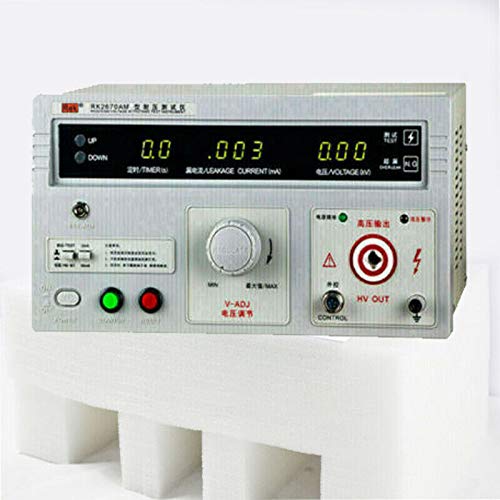

110V 2671AM 5KV AC/DC Hi-Pot Tester - High Voltage Withstand Testing Tool for Electrical Safety Inspection & Equipment Maintenance

Specifications：Model: RK2670AMTest Voltage (AC):0~5KV +/-5%Leakage Current (AC): 0~2/20mA +/-5%Timing (s): 0~99s; Manual controlPmax: 100VAConverter Volome: Converter VolomeIntput Voltage(Power):110VWeight:11KGPre-used CautionRead the following items carefully before operating RK267 seriesvoltage withstand test instrumentUse three-hole power supply plug and insure GND connection well.GND port and power supply GND port should be connected wellWear insulation glove, stand on insulation matAnti-clockwisely circumvolve “V-ADJ” rotary switch to the maximum before turn on test instrument.Before preset all functions, reset instrumentDon’t connect test port and test wire when doing testDon’t connect HV output port with shield box or GND wire to avoid instrument damage.Turn off power when accident take placeExamine and repair when Indicator or annunciator is out of functionOperate carefully to avoid hazard when take the remote test.11.The instrument must be placed on the worktable of conductive materials12.The operator can not wear clothes with metal decoration or wear metal accessories13.When the tester is in the test conditions, the test line, the test probes, output end , and the test objects are all with high pressure, do not touch!Package include:1×Withstand voltage test equipment1×High voltage test bar1×Remote control test bar1×Ground wire1×power cord1x instruction manual
