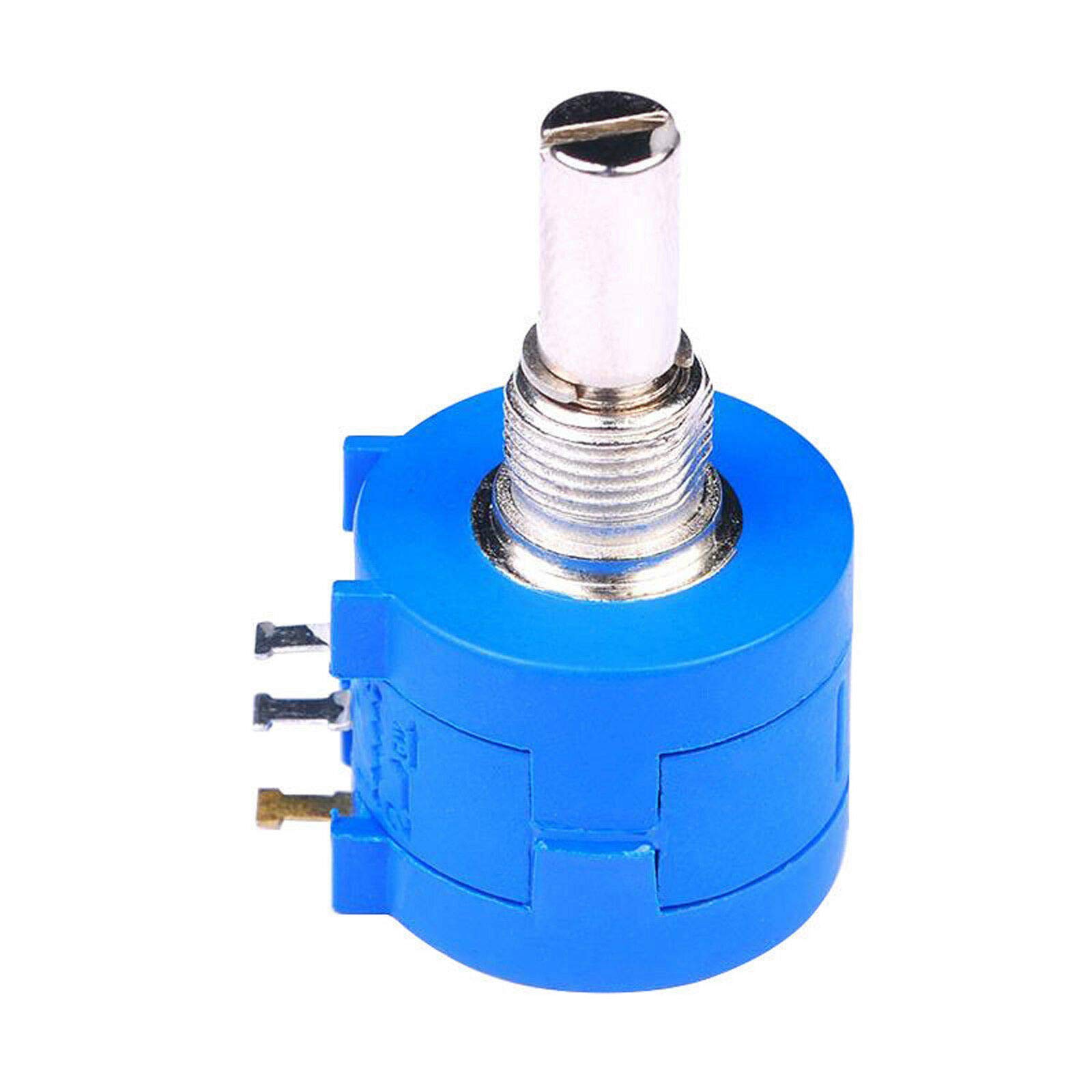

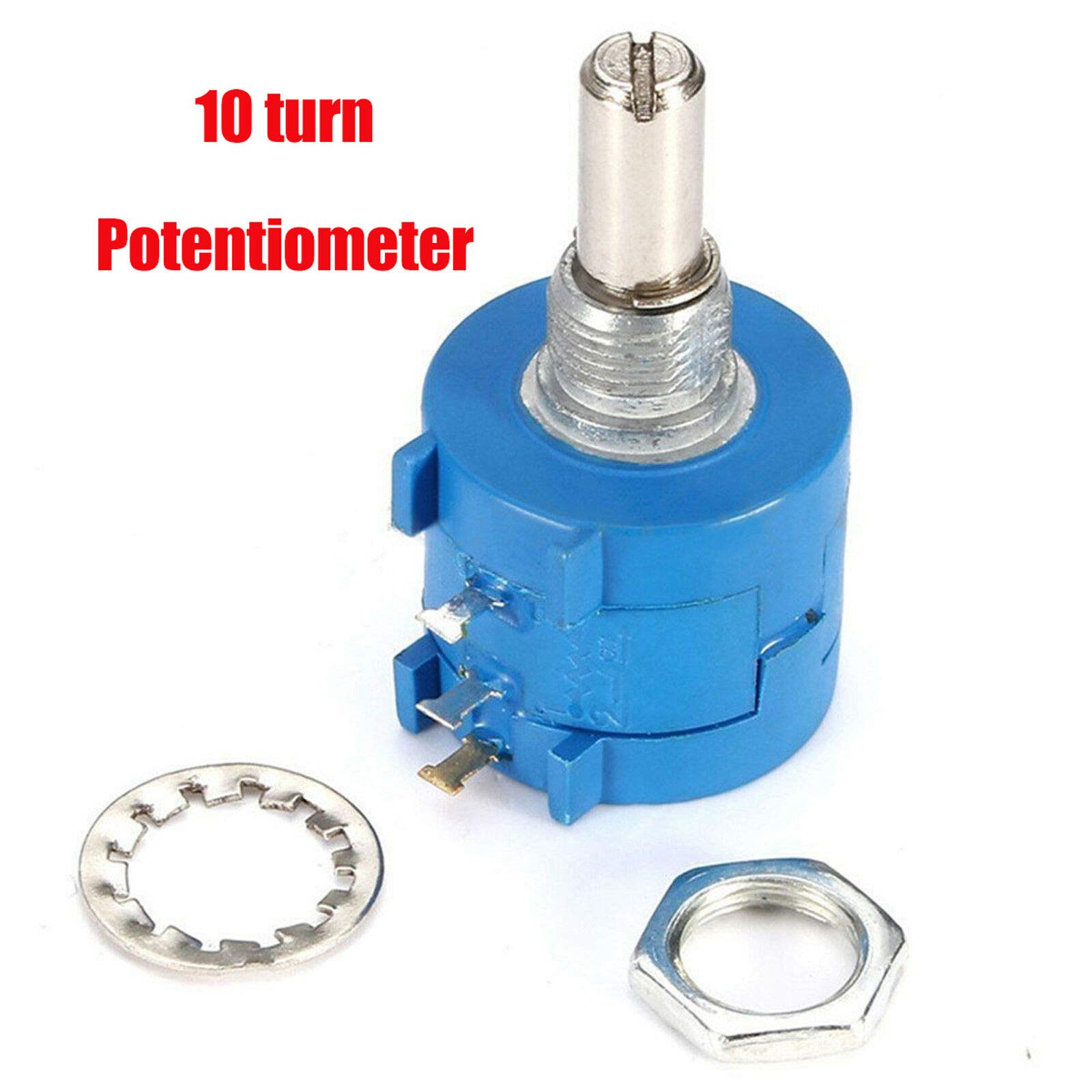

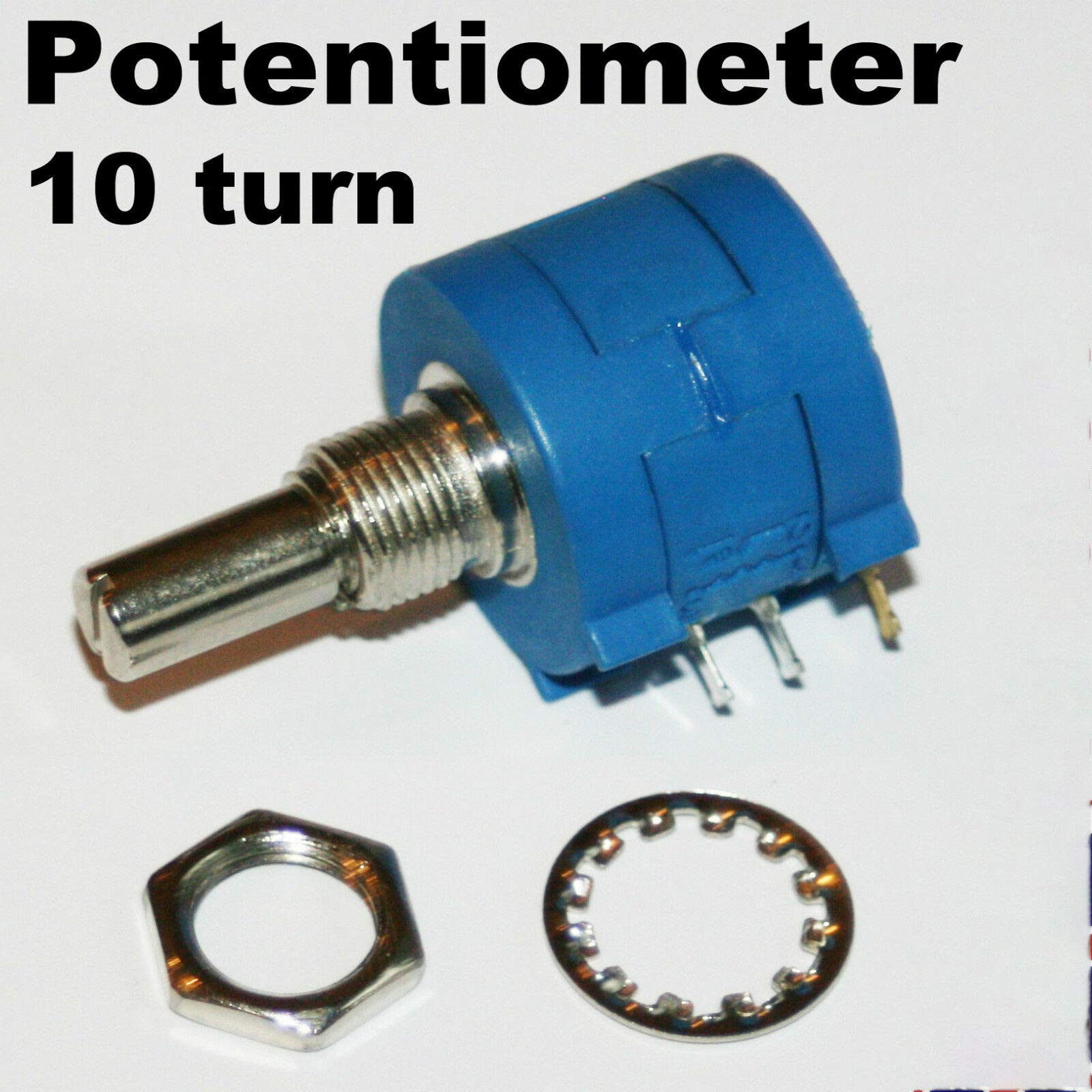

Description: Potentiometer 10 turns 3590S POT multi-turn variable precision wound High precision wirewound potentiometers. 10 turns. Often referred to as 'multi-turn potentiometers' and 3590S Can replace a single-turn (or quarter-turn) potentiometer with one of these to provide greater precision. Functionality: Number of laps: 10 Power: 2 watts Rotational life: 1 to 2 million shaft revolutions Temperature coefficient: ± 50ppm / ° C Rotation: 3600 ° Resistance material: winding Termination Type: Solder Contactor Diameter: 0.250 "(6.35mm) Dimensions - Body: Round - 0.875 "diameter x 0.732" L (22.22mm x 18.60mm) package:1x potentiometer
High precision wirewound potentiometers. 10 turns.
Can replace a single-turn (or quarter-turn) potentiometer with one of these to provide greater precision.
Number of laps 10. Power 2 watts. Rotational life 1 to 2 million shaft revolutions. Temperature coefficient ± 50ppm / ° C.
Rotation 3600 °. Resistance material winding. Termination Type Solder.

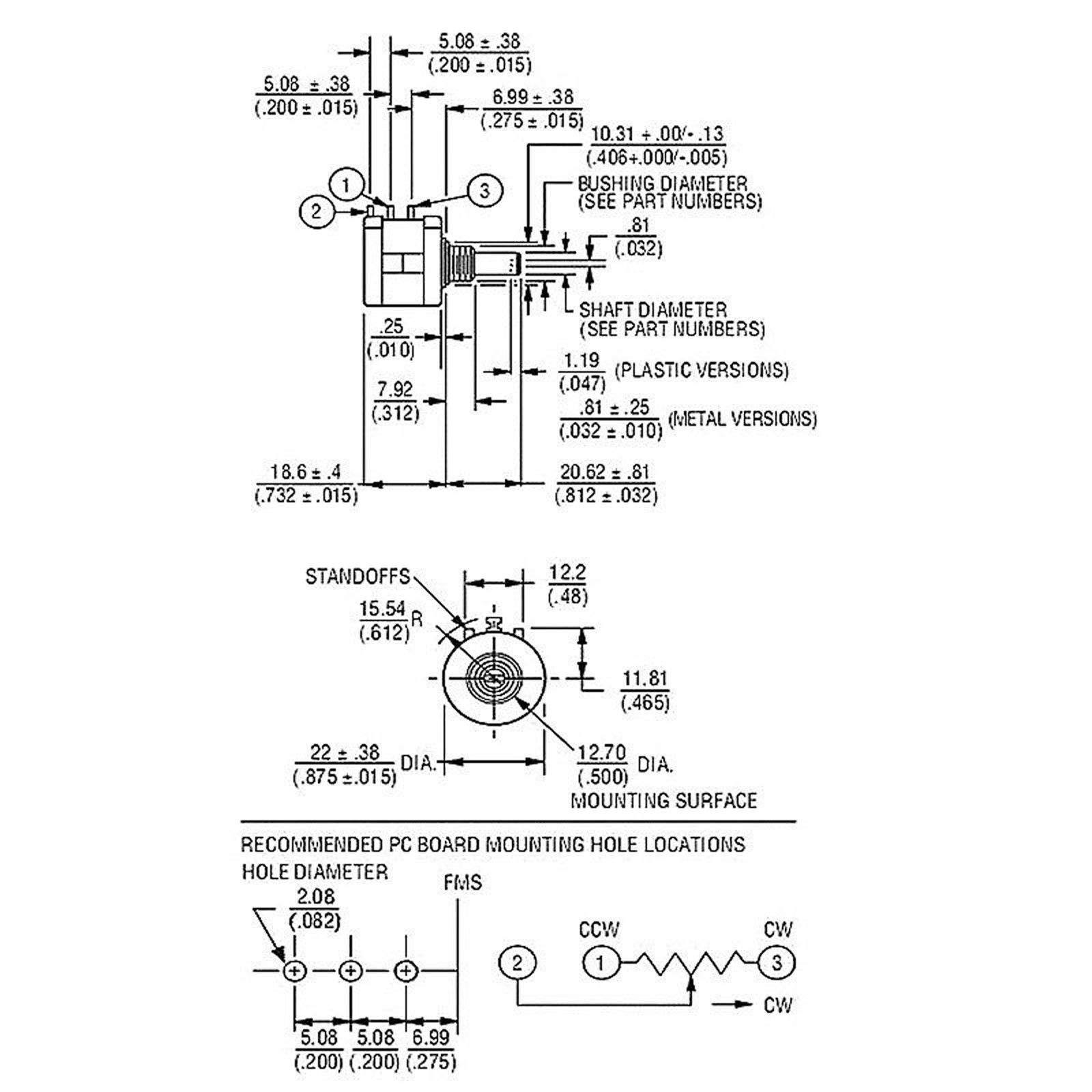

Dimensions - Body Round - 0.875 "diameter x 0.732" L (22.22mm x 18.60mm).
